HFSS Eigenmode Simulation of a CPW Resonator¶

import sys

if "google.colab" in sys.modules:
    import subprocess

    print("Running in Google Colab. Installing QPDK...")
    subprocess.check_call(
        [
            sys.executable,
            "-m",
            "pip",
            "install",
            "-q",
            "qpdk[models] @ git+https://github.com/gdsfactory/quantum-rf-pdk.git",
        ]
    )

import os
import tempfile
import time
from pathlib import Path

from ansys.aedt.core import Hfss, settings
from IPython.display import Image, display
from scipy.optimize import minimize_scalar

from qpdk import PDK
from qpdk.cells.resonator import resonator
from qpdk.config import PATH
from qpdk.models.resonator import resonator_frequency
from qpdk.simulation import HFSS, prepare_component_for_aedt
from qpdk.tech import coplanar_waveguide

PDK.activate()

# Create a meandering quarter-wave resonator
# With default CPW dimensions (10µm width, 6µm gap)
cpw_cross_section = coplanar_waveguide(width=10, gap=6)

# Calculate length for 5 GHz target
target_f_hz = 5e9


# Use scipy.optimize to find the exact length for the target frequency
def objective(length):
    """Objective function to find the exact length for the target frequency.

    Returns:
        Absolute difference between calculated and target frequency.
    """
    f_res = resonator_frequency(
        length=length, cross_section=cpw_cross_section, is_quarter_wave=True
    )
    return abs(f_res - target_f_hz)


result = minimize_scalar(objective, bounds=(1000, 10000), method="bounded")
current_length = result.x

res_component = resonator(
    length=current_length,
    meanders=4,  # Number of meander turns
    cross_section=cpw_cross_section,
    open_start=True,  # Open end (voltage antinode)
    open_end=False,  # Shorted end (voltage node)
)

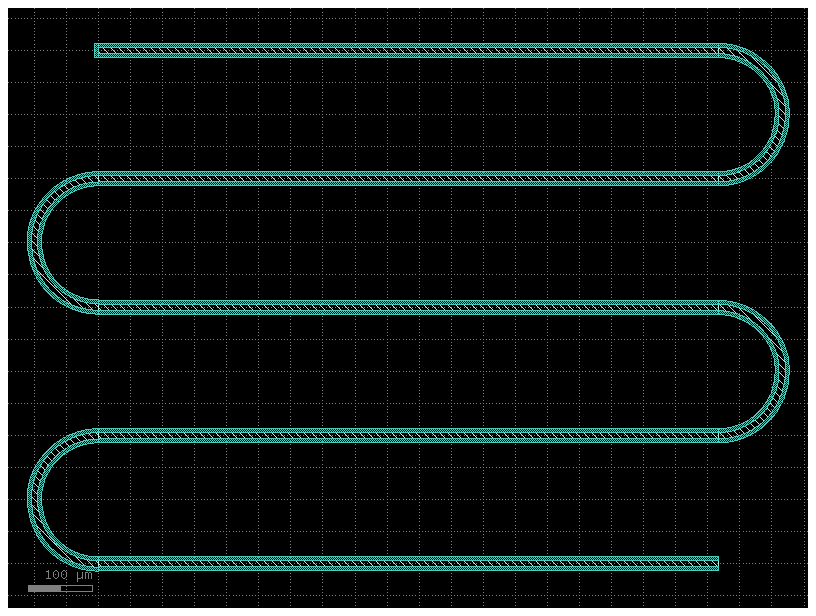

# Visualize the component
res_component.plot()
print(f"Resonator bounding box: {res_component.bbox}")
print(f"Expected quarter-wave frequency: ~{target_f_hz / 1e9:.2f} GHz")
print(f"Calculated length: {current_length:.1f} µm")

# Configuration for HFSS simulation
EIGENMODE_CONFIG = {
    "min_frequency_ghz": 3.0,  # Start searching from 3 GHz
    "num_modes": 1,  # Find 1 eigenmode
    "max_passes": 15,  # Maximum adaptive mesh passes
    "min_passes": 2,
    "percent_refinement": 30,
}

# Example HFSS eigenmode simulation workflow
# This code block demonstrates the full workflow but requires HFSS license

# Ensure Ansys path is set so PyAEDT can find it
ansys_default_path = "/usr/ansys_inc/v252/AnsysEM"
if "ANSYSEM_ROOT252" not in os.environ and Path(ansys_default_path).exists():
    os.environ["ANSYSEM_ROOT252"] = ansys_default_path

settings.use_grpc_uds = False


# Create temporary directory for project
temp_dir = tempfile.TemporaryDirectory(suffix=".ansys_qpdk")
project_path = Path(temp_dir.name) / "resonator_eigenmode.aedt"

# Initialize HFSS with Eigenmode solution
hfss = Hfss(
    project=str(project_path),
    design="CPW_Resonator",
    solution_type="Eigenmode",
    non_graphical=False,
    new_desktop=True,
    version="2025.2",
)
hfss.modeler.model_units = "um"

print(f"HFSS project created: {hfss.project_file}")
print(f"Design name: {hfss.design_name}")
print(f"Solution type: {hfss.solution_type}")

# Prepare component for export
res_component = prepare_component_for_aedt(res_component, margin_draw=200)

# Initialize HFSS wrapper
hfss_sim = HFSS(hfss)

# Import the component geometry using native GDS import
success = hfss_sim.import_component(res_component, import_as_sheets=True)
print(f"GDS import successful: {success}")

# Add substrate below the component
substrate_name = hfss_sim.add_substrate(
    res_component,
    thickness=500.0,
    material="silicon",
)
print(f"Created substrate: {substrate_name}")

# Add air region with PEC boundary for eigenmode analysis
air_region_name = hfss_sim.add_air_region(
    res_component,
    height=500.0,
    substrate_thickness=500.0,
    pec_boundary=True,
)
print(f"Created air region with PEC boundary: {air_region_name}")

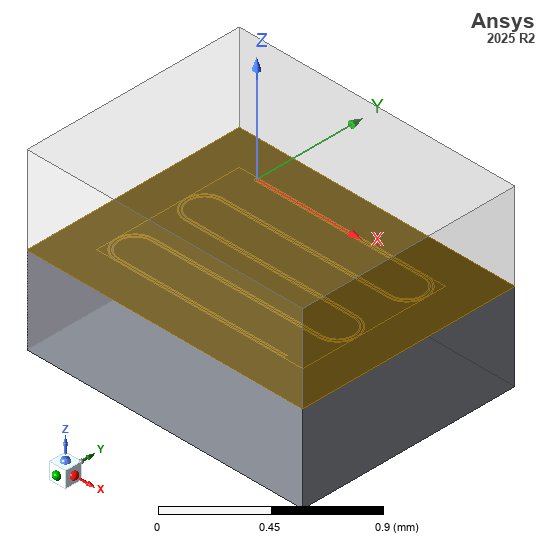

# Ensure HFSS model fits the screen
hfss.modeler.fit_all()

# Save screenshot
img_dir = PATH.repo / "docs" / "_static" / "images"
img_dir.mkdir(parents=True, exist_ok=True)
hfss_img_path = img_dir / "hfss_eigenmode_resonator_geom.jpg"
hfss.post.export_model_picture(
    full_name=str(hfss_img_path), show_axis=True, show_grid=False, show_ruler=True
)

# Display in notebook
display(Image(filename=str(hfss_img_path)))

# Create eigenmode setup
setup = hfss.create_setup(name="EigenmodeSetup")

setup.props["MinimumFrequency"] = f"{EIGENMODE_CONFIG['min_frequency_ghz']}GHz"
setup.props["NumModes"] = EIGENMODE_CONFIG["num_modes"]
setup.props["MaximumPasses"] = EIGENMODE_CONFIG["max_passes"]
setup.props["MinimumPasses"] = EIGENMODE_CONFIG["min_passes"]
setup.props["PercentRefinement"] = EIGENMODE_CONFIG["percent_refinement"]
setup.props["ConvergeOnRealFreq"] = True
setup.props["MaxDeltaFreq"] = 0.1  # 0.1% convergence criterion

setup.update()
print("Eigenmode setup configured:")
print(f"  - Min frequency: {EIGENMODE_CONFIG['min_frequency_ghz']} GHz")
print(f"  - Number of modes: {EIGENMODE_CONFIG['num_modes']}")
print(f"  - Max passes: {EIGENMODE_CONFIG['max_passes']}")

print("Starting eigenmode analysis...")
print("(This may take several minutes)")

# Save project before analysis
hfss.save_project()

# Run the analysis
start_time = time.time()
success = hfss.analyze_setup("EigenmodeSetup", cores=4)
elapsed = time.time() - start_time

if not success:
    print("\nERROR: HFSS simulation failed!")
    # Try to get more info from HFSS logs if possible
else:
    print(f"Analysis completed in {elapsed:.1f} seconds")

# Extract results using the wrapper
sim_results = hfss_sim.get_eigenmode_results("EigenmodeSetup")

print("\n=== Eigenmode Results ===")
print("-" * 40)

results = {
    "frequencies_ghz": sim_results["frequencies"],
    "q_factors": sim_results["q_factors"],
}

if not results["frequencies_ghz"]:
    print("No eigenmodes found. Check simulation logs and geometry.")
else:
    for i, (freq_ghz, q_factor) in enumerate(
        zip(results["frequencies_ghz"], results["q_factors"]), 1
    ):
        print(f"Mode {i}: f = {freq_ghz:.4f} GHz, Q = {q_factor:.1f}")

print("-" * 40)

# Compare with analytical estimate
expected_freq = target_f_hz / 1e9  # Target frequency
if results["frequencies_ghz"]:
    actual_freq = results["frequencies_ghz"][0]
    error_percent = abs(actual_freq - expected_freq) / expected_freq * 100
    print("\nComparison with analytical estimate:")
    print(f"  Expected (target): {expected_freq:.4f} GHz")
    print(f"  Simulated:         {actual_freq:.4f} GHz")
    print(f"  Difference:        {error_percent:.1f}%")

# Ensure the model fits the screen
hfss.modeler.fit_all()

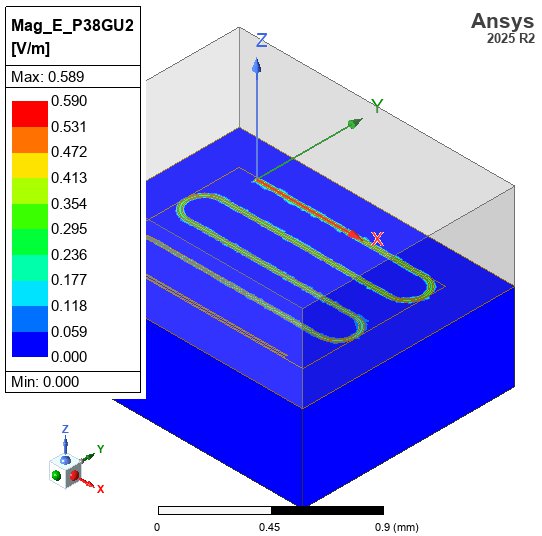

# Create a surface field plot of the electric field magnitude on the substrate
plot = hfss.post.create_fieldplot_surface(
    assignment=[substrate_name], quantity="Mag_E", setup=f"{setup.name} : LastAdaptive"
)

# Export the field plot picture
hfss_field_img_path = img_dir / "hfss_eigenmode_resonator_field.jpg"
if plot:
    hfss.post.export_model_picture(
        full_name=str(hfss_field_img_path),
        show_axis=True,
        show_grid=False,
        show_ruler=True,
        field_selections="all",
    )
else:
    print("Failed to create field plot")

# Display in notebook
display(Image(filename=str(hfss_field_img_path)))

# Save and close
hfss.save_project()
# hfss.release_desktop()
time.sleep(2)  # Allow HFSS to shut down

# Clean up temp directory
temp_dir.cleanup()
print("HFSS session closed and temporary files cleaned up")
