MZM RF Transmission Line Model (scikit-rf)

The voltage integration method

The following sections describe using the voltage integration method to determine the RF properties of a Mach-Zehnder Modulator (MZM). More information can be found in Pupalaikis2023. The mathematical idea is to discretize the traveling wave modulator and integrate the voltage along the line, accounting for the walk-off between the optical and electrical wave. This is essentially a circuit implementation of the matrix method shown in Li2004.

\[ M(f) = \left|\frac{2}{NV_S}\sum_{n=1}^{N}V_n e^{j\omega[\ell_1+(n-1)\ell_0]/v_o} \frac{1}{1-\omega^2 L_a C_a + j\omega R_a C_a}\right|^2 \]

The generic implementation from a circuit perspective creates the following unit cell:

MZM 4-port unit cell

The circuit consists of 3 main sections:

  1. Unloaded transmission line — abstracted as a 2-port network. This can represent an RLGC element, a unit-cell simulated by FEM, or any other model for the S-parameters of a transmission line segment without lumped elements attached.
  2. Active diode section — represents the PN junction as an RC network to ground.
  3. Voltage monitor — the voltage across the capacitor is monitored by a voltage-controlled voltage source (VCVS) connected to a time delay. The time delay represents the optical group delay of the light envelope passing through this unit of the MZM.

By having the electrical signal travel along with the optical signal and being summed each time by the VCVS, the voltage is effectively integrated along the line. The unit cell can be cascaded many times to determine the response of the MZM. This creates an equivalent circuit to the mathematical expression above. The advantage of the circuit approach is that it requires no post-processing and can be extracted directly from circuit analysis.

Upper bound on EO bandwidth from electrical S21

Under perfect velocity and impedance matching between the microwave and optical waves (\(n_\mathrm{opt} = n_\mu\)), the electro-optic 3 dB bandwidth corresponds to a propagation loss condition of \(\alpha l = 0.7384\). At this condition, the electrical insertion loss evaluates to:

\[ 20\log(e^{-\alpha l}) = 20\log(e^{-0.7384}) \approx -6.4\ \mathrm{dB} \]

This means that under ideal velocity matching, measuring the frequency at which \(|S_{21}|\) drops to \(-6.4\ \mathrm{dB}\) directly yields the EO 3 dB cut-off frequency.

In practice, velocity mismatch introduces additional phase walk-off which reduces modulation efficiency at high frequencies. The EO bandwidth is therefore always lower than the \(-6.4\ \mathrm{dB}\) electrical criterion, making it a theoretical upper bound.

References

  • [Pupalaikis2023] Alloin, Laurent & de Valicourt, Guilhem & Pupalaikis, Peter & Elsinger, Lukas & Daunt, Chris. (2023). Simulation and Analysis of Electrical/Optical Communication Links Using OpenSource Software.
  • [Li2004] Li et al (2004). Analysis of segmented traveling-wave optical modulators.

Implementation in scikit-rf

import copy
from functools import partial

import matplotlib.pyplot as plt
import numpy as np
import skrf as rf
from scipy.constants import speed_of_light as c
from skrf.constants import NumberLike
from skrf.media.definedAEpTandZ0 import DefinedAEpTandZ0

Unloaded transmission line

The unloaded model uses the Djordjevic/Svensson causal dielectric model available in scikit-rf. A subclass adds an optional DC resistive loss term to the conductor attenuation.

class DefinedAEpTandZ02(DefinedAEpTandZ0):
    """Transmission line model with additional skin-effect losses."""

    def __init__(
        self,
        frequency=None,
        A0=0.0,
        A=0.0,
        f_A=1.0,
        ep_r=1.0,
        tanD=0.0,
        z0_port=None,
        z0=50.0,
        f_low=1.0e6,
        f_high=1.0e12,
        f_ep=1.0e9,
        model="frequencyinvariant",
    ):
        rf.media.Media.__init__(self, frequency=frequency, z0_port=z0_port)
        self.A0 = (A0,)
        self.A, self.f_A = A, f_A
        self.ep_r, self.tanD = ep_r, tanD
        self.z0_characteristic = z0
        self.f_low, self.f_high, self.f_ep = f_low, f_high, f_ep
        self.model = model
        self.z0_port = z0_port

    @property
    def alpha_conductor(self) -> NumberLike:
        """Losses due to conductor resistivity."""
        A, f_A, f, A0 = self.A, self.f_A, self.frequency.f, self.A0
        return A0 + (A * np.log(10) / 20 * np.sqrt(f / f_A))


unloaded_model = partial(
    DefinedAEpTandZ02, f_low=1e9, f_high=100e9, f_ep=20e9, model="djordjevicsvensson"
)
ep_r = 4.04
tanD = 0.11
A = 0.0009
z0 = 85
z0_port = 50
d = 200
units = "um"

freq = rf.Frequency(start=1e-3, stop=40, npoints=100, unit="GHz")
media = unloaded_model(
    frequency=freq, ep_r=ep_r, tanD=tanD, A=A, z0=z0, z0_port=z0_port
)
unloaded_network = media.line(d=d, unit=units)

Additional devices

Several additional devices are needed to integrate the voltage along the line:

  • Voltage-controlled voltage source (VCVS)
  • Transmission line delay
  • 2-port voltage amplifier
def vcvs(name, frequency, gain=1):
    """Create a Voltage-Controlled Voltage Source (VCVS) 4-port network."""
    s = rf.ALMOST_ZERO * np.ones([len(frequency), 4, 4], dtype=complex)
    s[:, 0, 0] = 1
    s[:, 1, 1] = 1
    s[:, 2, 0] = gain
    s[:, 2, 1] = -gain
    s[:, 2, 3] = 1
    s[:, 3, 0] = -gain
    s[:, 3, 1] = gain
    s[:, 3, 2] = 1
    return rf.Network(name=name, frequency=frequency, s=s)


def delay_line(frequency, time_delay, zc=50, z0=50, name="delay_line"):
    """Create a transmission line delay 2-port network."""
    gamma = 1j * frequency.w * time_delay
    p = (zc - z0) / (zc + z0)
    prop = np.exp(-gamma)
    denom = 1.0 - (p * prop) ** 2
    s11 = (p * (1.0 - prop**2)) / denom
    s21 = ((1.0 - p**2) * prop) / denom
    s = np.ones([len(frequency), 2, 2], dtype=complex)
    s[:, 0, 0] = s[:, 1, 1] = s11
    s[:, 0, 1] = s[:, 1, 0] = s21
    return rf.Network(name=name, frequency=frequency, s=s)


def voltage_amplifier_2port(frequency, G, Zi, Zo, Z0=50.0, name="amp"):
    """Create a two-port voltage amplifier network."""
    s = np.ones([len(frequency), 2, 2], dtype=complex)
    s[:, 0, 0] = (Zi - Z0) / (Zi + Z0)
    s[:, 0, 1] = 0
    s[:, 1, 0] = 2.0 * G * Zi * Z0 / ((Zi + Z0) * (Zo + Z0))
    s[:, 1, 1] = (Zo - Z0) / (Zo + Z0)
    return rf.Network(name=name, frequency=frequency, s=s)

Assembling the loaded unit cell

A scikit-rf circuit is created for a unit cell of configurable length. The cell combines the unloaded transmission line with the PN junction RC model and the voltage integration chain.

def generate_loaded_circuit(
    half_unloaded_section,
    r_length=4.7e-3,
    c_per_length=320e-12,
    d=100e-6,
    unit="m",
    z0=50,
    gain=1 / 20.0,
    optical_group_index=4.05,
):
    """Generate a loaded MZM unit cell circuit.

    Args:
        half_unloaded_section: 2-port skrf.Network for half the unloaded line.
        r_length: Sheet resistance of the diode [Ohm*m].
        c_per_length: Capacitance per length of the diode [F/m].
        d: Subsection length.
        unit: Length unit for d.
        z0: Port reference impedance.
        gain: VCVS gain (typically 1/n_sections).
        optical_group_index: Optical group index for the delay line.

    Returns:
        skrf.Circuit: The loaded unit cell circuit.
    """
    half_unloaded_section_in = copy.deepcopy(half_unloaded_section)
    half_unloaded_section_in.name = "unloaded_in"
    half_unloaded_section_out = copy.deepcopy(half_unloaded_section_in)
    half_unloaded_section_out.name = "unloaded_out"

    freq = half_unloaded_section.frequency
    media = DefinedAEpTandZ02(frequency=freq, z0=half_unloaded_section.z0[0, 0])

    d_m = rf.constants.to_meters(d=d, unit=unit)
    cap_per_section = d_m * c_per_length
    r_per_section = r_length / d_m
    time_delay = d_m * optical_group_index / c

    vcvs1 = vcvs(frequency=freq, gain=gain, name="vcvs1")
    delay = delay_line(frequency=freq, time_delay=time_delay, zc=50, name="delay1")
    amp_in = voltage_amplifier_2port(frequency=freq, G=1, Zi=50, Zo=0, name="amp_in")
    amp_out = voltage_amplifier_2port(frequency=freq, G=2, Zi=50, Zo=50, name="amp_out")

    port1 = rf.Circuit.Port(frequency=freq, name="port1", z0=z0)
    port2 = rf.Circuit.Port(frequency=freq, name="port2", z0=z0)
    port3 = rf.Circuit.Port(frequency=freq, name="port3", z0=z0)
    port4 = rf.Circuit.Port(frequency=freq, name="port4", z0=z0)

    cap = media.capacitor(cap_per_section, name="cap1")
    res1 = media.resistor(r_per_section, name="res1")
    ground = rf.Circuit.Ground(frequency=freq, z0=z0, name="ground")

    loaded_connections = [
        [(port1, 0), (half_unloaded_section_in, 0)],
        [(port2, 0), (amp_in, 0)],
        [(port3, 0), (half_unloaded_section_out, 1)],
        [(port4, 0), (amp_out, 1)],
        [(half_unloaded_section_in, 1), (res1, 0), (half_unloaded_section_out, 0)],
        [(res1, 1), (cap, 0), (vcvs1, 1)],
        [(cap, 1), (vcvs1, 0), (ground, 0)],
        [(vcvs1, 2), (amp_in, 1)],
        [(vcvs1, 3), (delay, 0)],
        [(amp_out, 0), (delay, 1)],
    ]

    return rf.Circuit(loaded_connections, name="loaded_section")

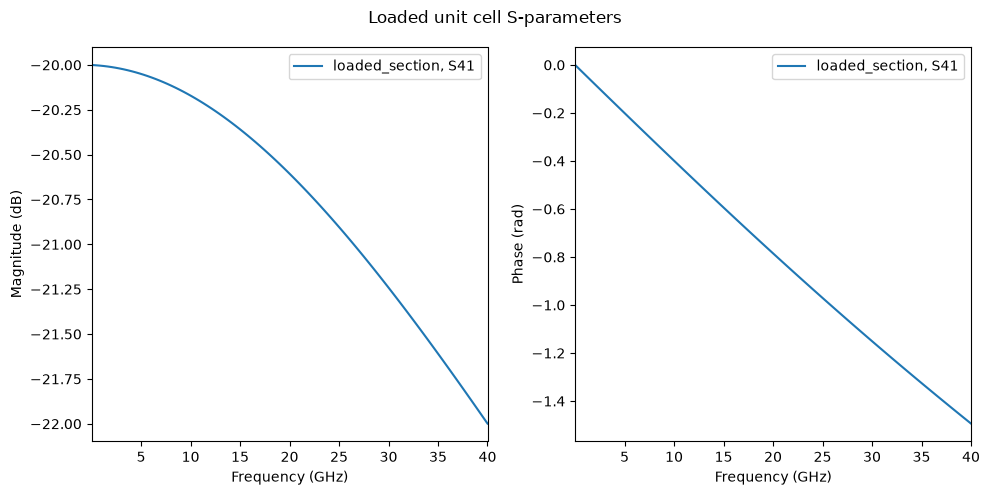

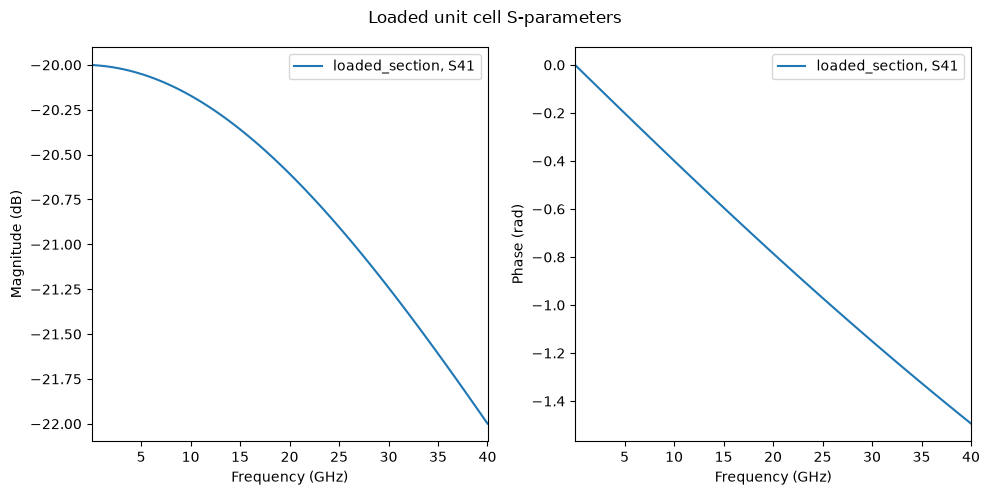

Unit cell response

Plot the S-parameters of a single 200 µm loaded unit cell.

n_sections = 10

z0 = 50
section_length = 200.0
section_unit = "um"
freq = rf.Frequency(start=1e-3, stop=40, npoints=100, unit="GHz")
media = unloaded_model(frequency=freq, ep_r=ep_r, tanD=tanD, A=A, z0=60, z0_port=z0)
unloaded_network = media.line(d=0.5 * section_length, unit=section_unit)

unit_cell = generate_loaded_circuit(
    unloaded_network, gain=1.0 / n_sections, d=section_length, unit=section_unit
).network

fig, axes = plt.subplots(ncols=2, figsize=(10, 5))
unit_cell.plot_s_db(3, 0, ax=axes[0])
unit_cell.plot_s_rad(3, 0, ax=axes[1])
plt.suptitle("Loaded unit cell S-parameters")
plt.tight_layout()
/tmp/ipykernel_3741/3927913886.py:3: FutureWarning: skrf.ALMOST_ZERO is deprecated. Please import ALMOST_ZERO from skrf.mathFunctions instead.
  s = rf.ALMOST_ZERO * np.ones([len(frequency), 4, 4], dtype=complex)
/tmp/ipykernel_3741/2320554357.py:44: FutureWarning: skrf.Circuit is deprecated. Please import Circuit from skrf.circuit instead.
  port1 = rf.Circuit.Port(frequency=freq, name="port1", z0=z0)
/tmp/ipykernel_3741/2320554357.py:45: FutureWarning: skrf.Circuit is deprecated. Please import Circuit from skrf.circuit instead.
  port2 = rf.Circuit.Port(frequency=freq, name="port2", z0=z0)
/tmp/ipykernel_3741/2320554357.py:46: FutureWarning: skrf.Circuit is deprecated. Please import Circuit from skrf.circuit instead.
  port3 = rf.Circuit.Port(frequency=freq, name="port3", z0=z0)
/tmp/ipykernel_3741/2320554357.py:47: FutureWarning: skrf.Circuit is deprecated. Please import Circuit from skrf.circuit instead.
  port4 = rf.Circuit.Port(frequency=freq, name="port4", z0=z0)
/tmp/ipykernel_3741/2320554357.py:51: FutureWarning: skrf.Circuit is deprecated. Please import Circuit from skrf.circuit instead.
  ground = rf.Circuit.Ground(frequency=freq, z0=z0, name="ground")
/tmp/ipykernel_3741/2320554357.py:66: FutureWarning: skrf.Circuit is deprecated. Please import Circuit from skrf.circuit instead.
  return rf.Circuit(loaded_connections, name="loaded_section")
/home/runner/work/simulation-templates/simulation-templates/.venv/lib/python3.12/site-packages/skrf/mathFunctions.py:303: RuntimeWarning: divide by zero encountered in log10
  out = 20 * np.log10(z)

png

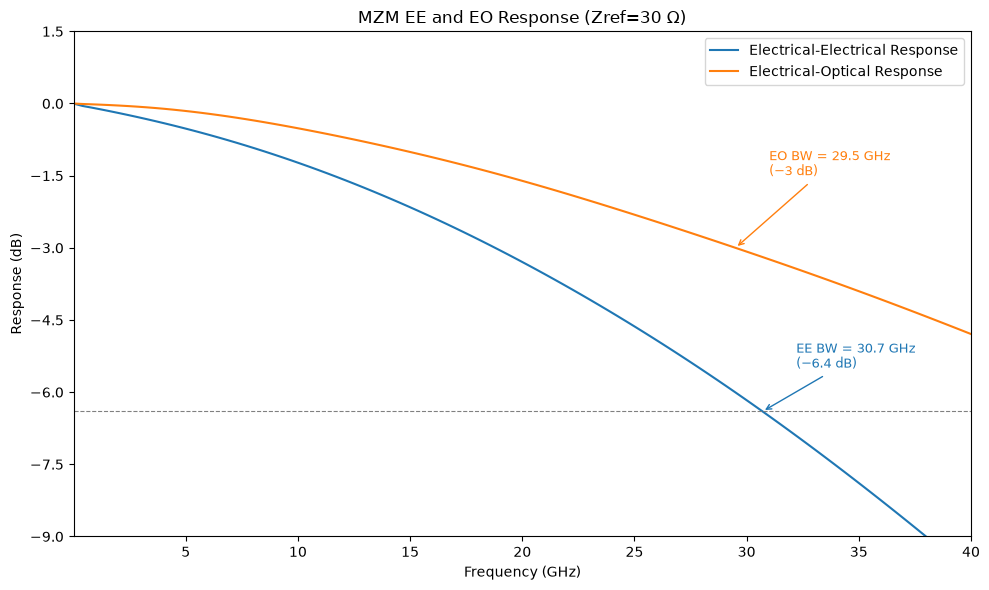

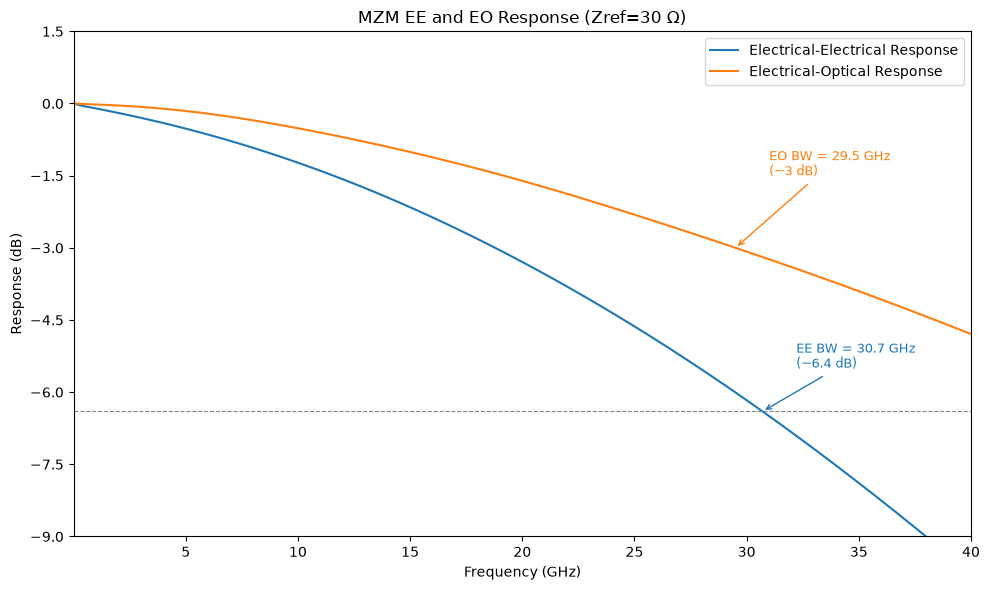

Cascading the unit cell

The unit cell is cascaded N times to model the full MZM. The final output port is terminated with a matched amplifier to normalize the response.

n_sections = 10

z0 = 50
zref = 30
section_length = 200.0
section_unit = "um"
freq = rf.Frequency(start=1e-3, stop=40, npoints=100, unit="GHz")
media = unloaded_model(frequency=freq, ep_r=ep_r, tanD=tanD, A=A, z0=60, z0_port=z0)
unloaded_network = media.line(d=0.5 * section_length, unit=section_unit)

unit_cell = generate_loaded_circuit(
    unloaded_network, gain=1.0 / n_sections, d=section_length, unit=section_unit
).network

cascaded_network = rf.network.cascade_list([unit_cell] * n_sections)
amp = voltage_amplifier_2port(frequency=freq, G=1, Zi=50, Zo=0, name="amp")
cascaded_network = rf.connect(cascaded_network, 3, amp, 0)
cascaded_network.name = "Cascaded MZM"
cascaded_network.renormalize([zref, zref, zref, zref])

f_ghz = cascaded_network.frequency.f_scaled
m = cascaded_network.frequency.multiplier
ee_response = cascaded_network.s_db[:, 2, 0]
eo_response = cascaded_network.s_db[:, 3, 0]


def crossing_freq(f, response, threshold):
    """Linear interpolation of the first downward threshold crossing."""
    diff = response - threshold
    idx = np.where(np.diff(np.sign(diff)))[0]
    if len(idx) == 0:
        return np.nan
    i = idx[0]
    t = -diff[i] / (diff[i + 1] - diff[i])
    return f[i] + t * (f[i + 1] - f[i])


f_ee = crossing_freq(f_ghz, ee_response, -6.4)
f_eo = crossing_freq(f_ghz, eo_response, -3.0)

fig, ax = plt.subplots(figsize=(10, 6))
cascaded_network.plot_s_db(2, 0, label="Electrical-Electrical Response")
cascaded_network.frequency.plot(eo_response, label="Electrical-Optical Response")

ax.axhline(y=-6.4, linestyle="--", color="gray", linewidth=0.8)

ax.annotate(
    f"EE BW = {f_ee:.1f} GHz\n($-$6.4 dB)",
    xy=(f_ee * m, -6.4),
    xytext=((f_ee + 1.5) * m, -5.5),
    arrowprops={"arrowstyle": "->", "color": "C0"},
    color="C0",
    fontsize=9,
)
ax.annotate(
    f"EO BW = {f_eo:.1f} GHz\n($-$3 dB)",
    xy=(f_eo * m, -3.0),
    xytext=((f_eo + 1.5) * m, -1.5),
    arrowprops={"arrowstyle": "->", "color": "C1"},
    color="C1",
    fontsize=9,
)

ax.legend()
ax.set_ylim(-9, 1.5)
ax.set_yticks(np.arange(-9, 3.0, 1.5))
ax.set_xlabel("Frequency (GHz)")
ax.set_ylabel("Response (dB)")
ax.set_title(f"MZM EE and EO Response (Zref={zref} Ω)")
plt.tight_layout()
/tmp/ipykernel_3741/3927913886.py:3: FutureWarning: skrf.ALMOST_ZERO is deprecated. Please import ALMOST_ZERO from skrf.mathFunctions instead.
  s = rf.ALMOST_ZERO * np.ones([len(frequency), 4, 4], dtype=complex)
/tmp/ipykernel_3741/2320554357.py:44: FutureWarning: skrf.Circuit is deprecated. Please import Circuit from skrf.circuit instead.
  port1 = rf.Circuit.Port(frequency=freq, name="port1", z0=z0)
/tmp/ipykernel_3741/2320554357.py:45: FutureWarning: skrf.Circuit is deprecated. Please import Circuit from skrf.circuit instead.
  port2 = rf.Circuit.Port(frequency=freq, name="port2", z0=z0)
/tmp/ipykernel_3741/2320554357.py:46: FutureWarning: skrf.Circuit is deprecated. Please import Circuit from skrf.circuit instead.
  port3 = rf.Circuit.Port(frequency=freq, name="port3", z0=z0)
/tmp/ipykernel_3741/2320554357.py:47: FutureWarning: skrf.Circuit is deprecated. Please import Circuit from skrf.circuit instead.
  port4 = rf.Circuit.Port(frequency=freq, name="port4", z0=z0)
/tmp/ipykernel_3741/2320554357.py:51: FutureWarning: skrf.Circuit is deprecated. Please import Circuit from skrf.circuit instead.
  ground = rf.Circuit.Ground(frequency=freq, z0=z0, name="ground")
/tmp/ipykernel_3741/2320554357.py:66: FutureWarning: skrf.Circuit is deprecated. Please import Circuit from skrf.circuit instead.
  return rf.Circuit(loaded_connections, name="loaded_section")
/tmp/ipykernel_3741/2171186014.py:17: FutureWarning: skrf.connect is deprecated. Please import connect from skrf.network instead.
  cascaded_network = rf.connect(cascaded_network, 3, amp, 0)

png
