MZM RF Transmission Line Model (SAX)¶

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import skrf as rf

jax.config.update("jax_enable_x64", True)

from functools import partial

import sax

C0 = 2.99792458e8


def ep_r_djordjevicsvensson(f, ep_r, tanD, f_low=1e3, f_high=1e12, f_ep=1e9):
    """Djordjevic/Svensson wideband Debye dispersion model."""
    k = jnp.log((f_high + 1j * f_ep) / (f_low + 1j * f_ep))
    fd = jnp.log((f_high + 1j * f) / (f_low + 1j * f))
    ep_d = -tanD * ep_r / jnp.imag(k)
    ep_inf = ep_r * (1.0 + tanD * jnp.real(k) / jnp.imag(k))
    return ep_inf + ep_d * fd


def alpha_conductor(f, A, f_A, A0=0.0):
    """Conductor attenuation constant with optional DC resistive loss term."""
    return A0 + A * jnp.log(10) / 20.0 * jnp.sqrt(f / f_A)


def alpha_dielectric(f, ep_r_f):
    """Dielectric attenuation constant."""
    ep_real = jnp.real(ep_r_f)
    tand_f = -jnp.imag(ep_r_f) / ep_real
    return jnp.pi * jnp.sqrt(ep_real) * f / C0 * tand_f


def beta_phase(f, ep_r_f):
    """Phase constant."""
    return 2.0 * jnp.pi * f * jnp.sqrt(jnp.real(ep_r_f)) / C0


def _tline_sparams(f, ep_r_f, A, f_A, z0_char, z0_port, length, A0=0.0):
    """Core S-parameter kernel."""
    alpha_c = alpha_conductor(f, A, f_A, A0)
    alpha_d = alpha_dielectric(f, ep_r_f)
    beta = beta_phase(f, ep_r_f)
    gamma = (alpha_c + alpha_d) + 1j * beta

    gl = gamma * length
    exp_gl = jnp.exp(-gl)
    gamma_r = (z0_char - z0_port) / (z0_char + z0_port)
    denom = 1.0 - gamma_r**2 * jnp.exp(-2 * gl)

    s11 = gamma_r * (1.0 - jnp.exp(-2 * gl)) / denom
    s21 = exp_gl * (1.0 - gamma_r**2) / denom

    return {
        ("o1", "o1"): s11,
        ("o1", "o2"): s21,
        ("o2", "o1"): s21,
        ("o2", "o2"): s11,
    }


def tline_ds(
    *,
    frequency=1e9,
    length=1e-3,
    A=0.0,
    f_A=1.0,
    ep_r=1.0,
    tanD=0.0,
    z0_characteristic=50.0,
    z0=50.0,
    f_low=1e3,
    f_high=1e12,
    f_ep=1e9,
):
    """SAX 2-port S-parameter model with Djordjevic/Svensson dispersive dielectric."""
    ep_r_f = ep_r_djordjevicsvensson(frequency, ep_r, tanD, f_low, f_high, f_ep)
    return _tline_sparams(
        frequency,
        ep_r_f,
        A,
        f_A,
        z0_char=z0_characteristic,
        z0_port=z0,
        length=length,
    )


unloaded_model = partial(tline_ds, f_low=1e9, f_high=100e9, f_ep=20e9)


def half_tline_ds(
    *,
    frequency=1e9,
    length=1e-3,
    A=0.0,
    f_A=1.0,
    ep_r=1.0,
    tanD=0.0,
    z0_characteristic=85.0,
    z0=50.0,
):
    """Half-length transmission line for the loaded unit cell."""
    return unloaded_model(
        frequency=frequency,
        length=0.5 * length,
        A=A,
        f_A=f_A,
        ep_r=ep_r,
        tanD=tanD,
        z0_characteristic=z0_characteristic,
        z0=z0,
    )

length = 5000e-6
tline_params = {
    "ep_r": 4.04,
    "tanD": 0.11,
    "A": 0.0009,
    "z0_characteristic": 60.0,
    "z0": 50,
    "f_low": 1e9,
    "f_high": 100e9,
    "f_ep": 20e9,
}

multiplier = 1e9
f = jnp.arange(1e-6, 100, 1e-2)

s = tline_ds(frequency=f * multiplier, length=length, **tline_params)

fig, axes = plt.subplots(ncols=2, figsize=(12, 5))
axes[0].plot(f, rf.complex_2_db(s["o2", "o1"]))
axes[0].set_xlabel("Frequency (GHz)")
axes[0].set_ylabel("S21 (dB)")

ng = (
    -C0
    * rf.unwrap(rf.complex_2_radian(s["o2", "o1"]))
    / (length * 2.0 * jnp.pi * f * multiplier)
)
axes[1].plot(f[100:], ng[100:])
axes[1].set_xlabel("Frequency (GHz)")
axes[1].set_ylabel("n_group")

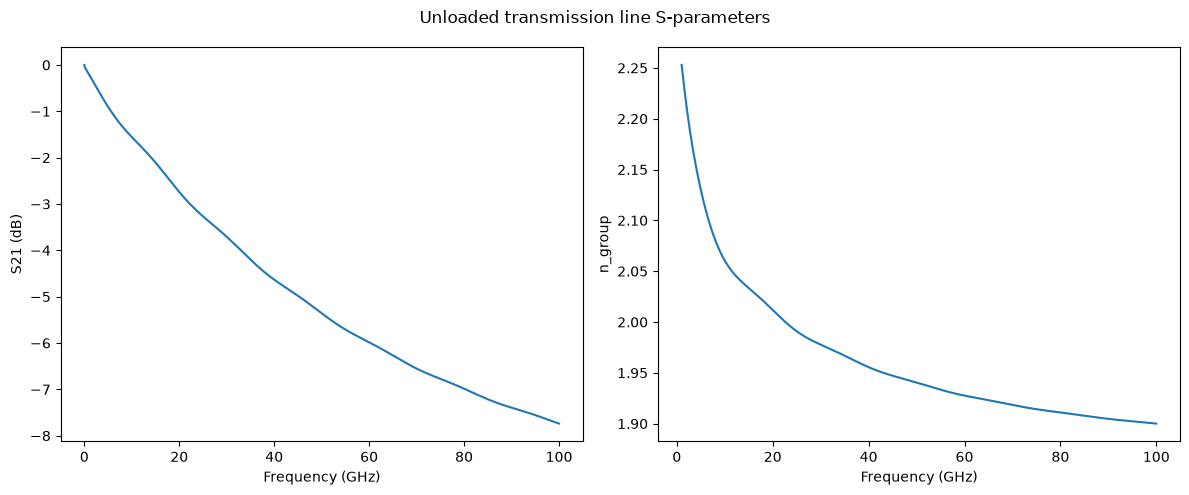

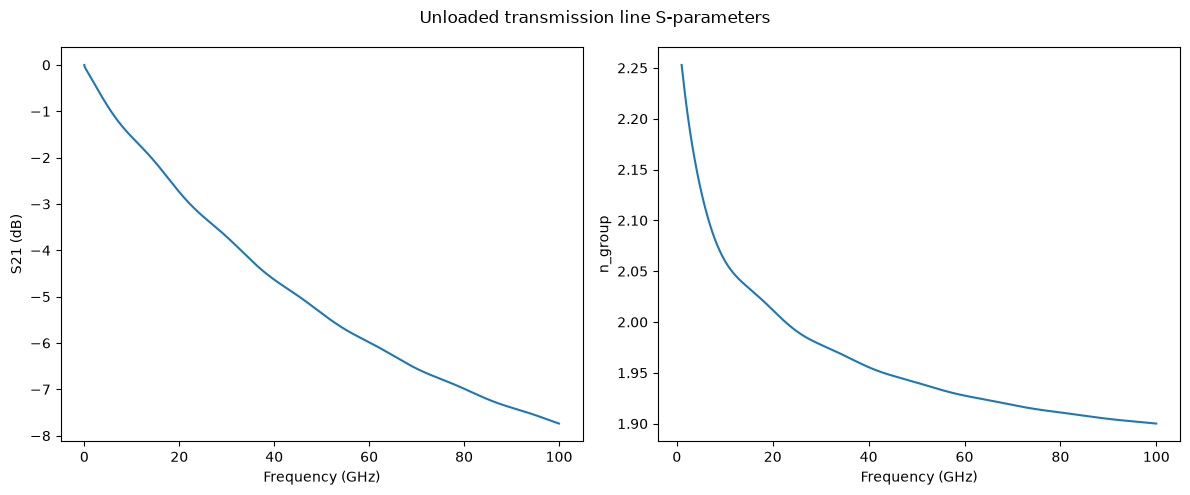

plt.suptitle("Unloaded transmission line S-parameters")
plt.tight_layout()

from sax.constants import C_M_S


def vcvs(*, gain=1.0):
    """Voltage-controlled voltage source (4-port)."""
    one = 1.0
    return sax.sdict(
        {
            ("o1", "o1"): one,
            ("o2", "o2"): one,
            ("o3", "o1"): gain * one,
            ("o3", "o2"): -gain * one,
            ("o3", "o4"): one,
            ("o4", "o1"): -gain * one,
            ("o4", "o2"): gain * one,
            ("o4", "o3"): one,
        }
    )


def delay_line(*, frequency=1e9, time_delay=2e-15, zc=50.0, z0_port=50.0):
    """Lossless transmission line delay (2-port)."""
    w = 2.0 * jnp.pi * frequency
    gamma = 1j * w * time_delay
    p = (zc - z0_port) / (zc + z0_port)
    prop = jnp.exp(-gamma)
    denom = 1.0 - (p * prop) ** 2
    S11 = p * (1.0 - prop**2) / denom
    S21 = (1.0 - p**2) * prop / denom
    return sax.reciprocal({("o1", "o1"): S11, ("o1", "o2"): S21, ("o2", "o2"): S11})


def optical_group_delay(*, frequency=5e9, length=1.0, ng=4.05, zc=50, z0_port=50):
    """Delay line parameterized by optical group index and physical length."""
    return delay_line(
        zc=zc, z0_port=z0_port, frequency=frequency, time_delay=length * ng / C_M_S
    )


def voltage_amplifier_two_port(g=1.0, zi=50.0, zo=50.0, z0=50.0):
    """Two-port voltage amplifier S-parameters."""
    return {
        ("o1", "o1"): (zi - z0) / (zi + z0),
        ("o2", "o1"): 2.0 * g * zi * z0 / ((zi + z0) * (zo + z0)),
        ("o2", "o2"): (zo - z0) / (zo + z0),
    }


def splitter_factory(num_ports=3):
    """Returns a SAX component for a general n-port lossless splitter/tee."""
    p = num_ports
    ports = [f"o{i + 1}" for i in range(p)]
    eye = jnp.eye(p)

    def splitter(*, z0=50.0):
        z0_arr = jnp.broadcast_to(jnp.asarray(z0, dtype=complex), (p,))
        inv_sum = jnp.sum(1.0 / z0_arr)
        off = (
            2.0
            * jnp.sqrt(jnp.outer(z0_arr.real, z0_arr.real))
            / (jnp.outer(z0_arr, z0_arr) * inv_sum)
        )
        z_load = 1.0 / (inv_sum - 1.0 / z0_arr)
        diag_vals = (z_load - z0_arr.conj()) / (z_load + z0_arr)
        mat = off * (1.0 - eye) + diag_vals[:, None] * eye
        return {
            (pi, pj): mat[i, j]
            for i, pi in enumerate(ports)
            for j, pj in enumerate(ports)
        }

    return splitter


def resistor(*, r, z0=50.0):
    """S-parameters for a series resistor."""
    z0_arr = jnp.broadcast_to(jnp.asarray(z0, dtype=complex), (2,))
    z0_0, z0_1 = z0_arr[0], z0_arr[1]
    r = jnp.asarray(r, dtype=complex)
    denom = r + (z0_0 + z0_1)
    off = 2.0 * jnp.sqrt(z0_0.real * z0_1.real) / denom
    return {
        ("o1", "o1"): (r - z0_0.conj() + z0_1) / denom,
        ("o1", "o2"): off,
        ("o2", "o1"): off,
        ("o2", "o2"): (r + z0_0 - z0_1.conj()) / denom,
    }


def capacitor(*, frequency=1e9, c, z0=50.0):
    """S-parameters for a series capacitor."""
    z0_arr = jnp.broadcast_to(jnp.asarray(z0, dtype=complex), (2,))
    z0_0, z0_1 = z0_arr[0], z0_arr[1]
    w = 2.0 * jnp.pi * jnp.asarray(frequency)
    c = jnp.asarray(c)
    denom = 1.0 + 1j * w * c * (z0_0 + z0_1)
    off = 2j * w * c * jnp.sqrt(z0_0.real * z0_1.real) / denom
    return {
        ("o1", "o1"): (1.0 - 1j * w * c * (z0_0.conj() - z0_1)) / denom,
        ("o1", "o2"): off,
        ("o2", "o1"): off,
        ("o2", "o2"): (1.0 - 1j * w * c * (z0_1.conj() - z0_0)) / denom,
    }


def resistance_length(*, length=1.0, resistance_per_length=4.7e-3, z0=50.0):
    """Series resistor scaled by physical length."""
    return resistor(r=resistance_per_length / length, z0=z0)


def capacitor_per_length(
    *, frequency=5e9, length=1.0, capacitance_per_length=320e-12, z0=50.0
):
    """Series capacitor scaled by physical length."""
    return capacitor(frequency=frequency, c=capacitance_per_length * length, z0=z0)


def gnd():
    """Ground (short-circuit) termination."""
    return {("o1", "o1"): -1.0 + 0j}

tline_params = {
    "ep_r": 4.04,
    "tanD": 0.11,
    "A": 0.0009,
    "z0_characteristic": 60,
    "f_low": 1e9,
    "f_high": 100e9,
    "f_ep": 20e9,
}

_loaded_netlist = {
    "instances": {
        "unloaded_in": {"component": "half_tline", "settings": tline_params},
        "unloaded_out": {"component": "half_tline", "settings": tline_params},
        "res1": {"component": "sheet_resistor"},
        "cap1": {"component": "sheet_capacitor"},
        "vcvs1": {"component": "vcvs", "settings": {"gain": 0.1}},
        "delay1": {"component": "delay_line", "settings": {"ng": 4.05}},
        "amp_in": {"component": "amp", "settings": {"g": 1.0, "zi": 50.0, "zo": 0.0}},
        "amp_out": {
            "component": "amp",
            "settings": {"g": 2.0, "zi": 50.0, "zo": 50.0},
        },
        "gnd": {"component": "gnd"},
        "tee_a": {"component": "tee"},
        "tee_b": {"component": "tee"},
        "tee_c": {"component": "tee"},
    },
    "connections": {
        "unloaded_in,o2": "tee_a,o1",
        "unloaded_out,o1": "tee_a,o2",
        "res1,o1": "tee_a,o3",
        "res1,o2": "tee_b,o1",
        "cap1,o1": "tee_b,o2",
        "vcvs1,o2": "tee_b,o3",
        "cap1,o2": "tee_c,o1",
        "vcvs1,o1": "tee_c,o2",
        "gnd,o1": "tee_c,o3",
        "vcvs1,o3": "amp_in,o2",
        "vcvs1,o4": "delay1,o1",
        "delay1,o2": "amp_out,o1",
    },
    "ports": {
        "port0": "unloaded_in,o1",
        "port1": "unloaded_out,o2",
        "port2": "amp_in,o1",
        "port3": "amp_out,o2",
    },
}

loaded_circuit, _ = sax.circuit(
    netlist=_loaded_netlist,
    models={
        "half_tline": half_tline_ds,
        "sheet_resistor": resistance_length,
        "sheet_capacitor": capacitor_per_length,
        "vcvs": vcvs,
        "delay_line": optical_group_delay,
        "amp": voltage_amplifier_two_port,
        "gnd": gnd,
        "tee": splitter_factory(num_ports=3),
    },
)

multiplier = 1e-9
f = jnp.linspace(1e-3, 40, 100) / multiplier

s = loaded_circuit(frequency=f, z0=50, length=200e-6)

fig, axes = plt.subplots(ncols=2, figsize=(12, 5))
axes[0].plot(f * multiplier, rf.complex_2_db(s[("port3", "port0")]))
axes[0].set_xlabel("Frequency (GHz)")
axes[0].set_ylabel("S41 (dB)")
axes[1].plot(f * multiplier, rf.unwrap_rad(rf.complex_2_radian(s[("port3", "port0")])))
axes[1].set_xlabel("Frequency (GHz)")
axes[1].set_ylabel("Phase (rad)")

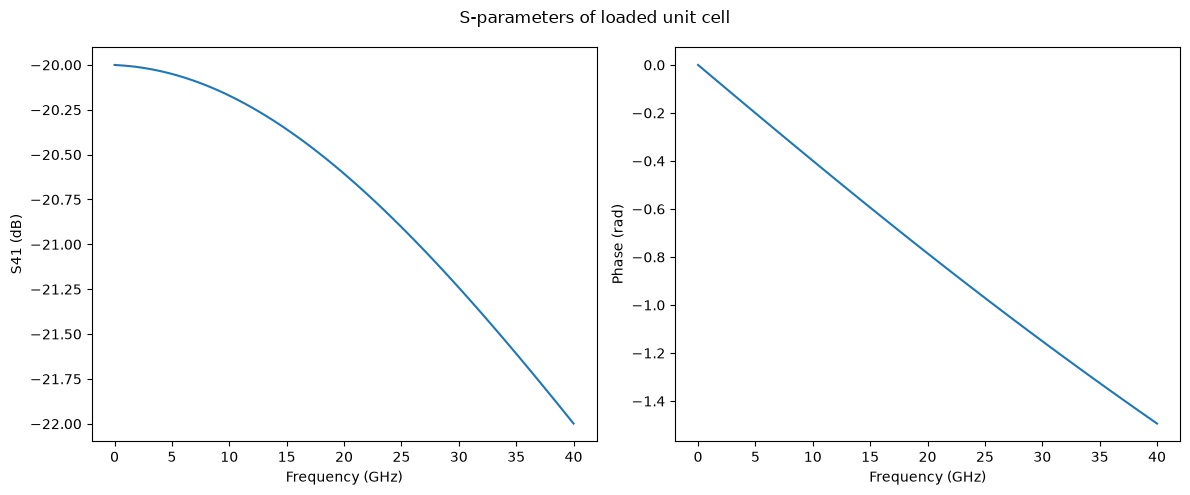

plt.suptitle("S-parameters of loaded unit cell")
plt.tight_layout()

def cascade_circuit(*, n_sections, subcircuit, port_connections):
    """Cascade n_sections copies of a SAX circuit by connecting specified ports."""
    instances = {f"cell_{i}": {"component": "cell"} for i in range(n_sections)}
    connections = {
        f"cell_{i},{out_port}": f"cell_{i + 1},{in_port}"
        for i in range(n_sections - 1)
        for out_port, in_port in port_connections.items()
    }
    ports = {
        **{in_port: f"cell_0,{in_port}" for in_port in port_connections.values()},
        **{
            out_port: f"cell_{n_sections - 1},{out_port}"
            for out_port in port_connections
        },
    }
    cascaded, _ = sax.circuit(
        netlist={"instances": instances, "connections": connections, "ports": ports},
        models={"cell": subcircuit},
    )
    return cascaded


def renormalize_s(s, z_old=50.0, z_new=25.0):
    """Renormalize an SDict from z_old to z_new reference impedance."""
    ports = list(dict.fromkeys(pair[0] for pair in s))
    n = len(ports)

    def _to_array(z):
        if isinstance(z, dict):
            return jnp.array([z[p] for p in ports], dtype=float)
        return jnp.broadcast_to(jnp.asarray(z, dtype=float), (n,))

    mat = jnp.moveaxis(
        jnp.stack([jnp.stack([s[(p_out, p_in)] for p_in in ports]) for p_out in ports]),
        [0, 1],
        [-2, -1],
    )
    z_old_arr = _to_array(z_old)
    z_new_arr = _to_array(z_new)
    gamma = (z_new_arr - z_old_arr) / (z_new_arr + z_old_arr)
    Gamma = jnp.diag(gamma)
    eye = jnp.eye(n)
    a = mat - Gamma
    b = eye - Gamma @ mat
    mat_new = jnp.linalg.solve(b.swapaxes(-1, -2), a.swapaxes(-1, -2)).swapaxes(-1, -2)
    return {
        (p_out, p_in): mat_new[..., i, j]
        for i, p_out in enumerate(ports)
        for j, p_in in enumerate(ports)
    }


z0 = 50
zref = 30
n_sections = 10
total_length = 2e-3
unit_length = total_length / n_sections

cascaded_circuit = cascade_circuit(
    n_sections=n_sections,
    subcircuit=loaded_circuit,
    port_connections={"port1": "port0", "port3": "port2"},
)

mzm_circuit, _ = sax.circuit(
    netlist={
        "instances": {
            "cascaded": {"component": "cascaded_circuit"},
            "amp": {"component": "amp", "settings": {"g": 1, "zi": 50, "zo": 0.0}},
        },
        "connections": {"cascaded,port3": "amp,o1"},
        "ports": {
            "port0": "cascaded,port0",
            "port1": "cascaded,port1",
            "port2": "cascaded,port2",
            "port3": "amp,o2",
        },
    },
    models={"cascaded_circuit": cascaded_circuit, "amp": voltage_amplifier_two_port},
)

s_cascade = mzm_circuit(frequency=f, gain=0.1, z0=z0, length=unit_length)
s_cascade = renormalize_s(s_cascade, z_old=z0, z_new=zref)

f_ghz = f * multiplier

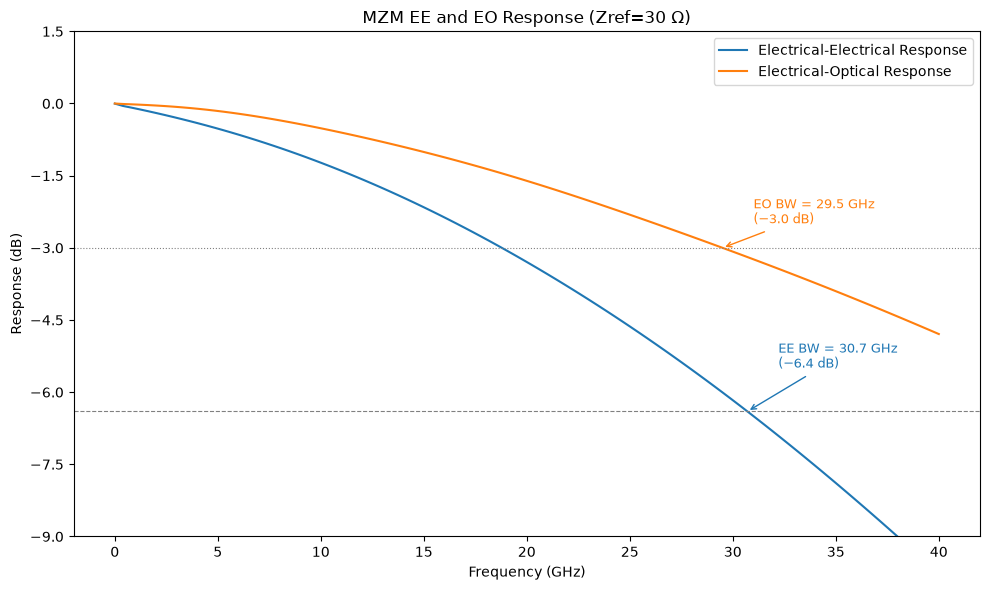

ee_response = rf.complex_2_db(s_cascade[("port1", "port0")])
eo_response = rf.complex_2_db(s_cascade[("port3", "port0")])


def crossing_freq(f, response, threshold):
    """Linear interpolation of the first downward threshold crossing."""
    diff = response - threshold
    idx = jnp.where(jnp.diff(jnp.sign(diff)))[0]
    if len(idx) == 0:
        return jnp.nan
    i = idx[0]
    t = -diff[i] / (diff[i + 1] - diff[i])
    return f[i] + t * (f[i + 1] - f[i])


f_ee = crossing_freq(f_ghz, ee_response, -6.4)
f_eo = crossing_freq(f_ghz, eo_response, -3.0)

fig, ax = plt.subplots(figsize=(10, 6))
ax.plot(f_ghz, ee_response, label="Electrical-Electrical Response")
ax.plot(f_ghz, eo_response, label="Electrical-Optical Response")

ax.axhline(y=-6.4, linestyle="--", color="gray", linewidth=0.8)
ax.axhline(y=-3.0, linestyle=":", color="gray", linewidth=0.8)

ax.annotate(
    f"EE BW = {f_ee:.1f} GHz\n($-$6.4 dB)",
    xy=(f_ee, -6.4),
    xytext=(f_ee + 1.5, -5.5),
    arrowprops={"arrowstyle": "->", "color": "C0"},
    color="C0",
    fontsize=9,
)
ax.annotate(
    f"EO BW = {f_eo:.1f} GHz\n($-$3.0 dB)",
    xy=(f_eo, -3.0),
    xytext=(f_eo + 1.5, -2.5),
    arrowprops={"arrowstyle": "->", "color": "C1"},
    color="C1",
    fontsize=9,
)

ax.legend()
ax.set_ylim(-9, 1.5)
ax.set_yticks(jnp.arange(-9, 3.0, 1.5))
ax.set_xlabel("Frequency (GHz)")
ax.set_ylabel("Response (dB)")
ax.set_title(f"MZM EE and EO Response (Zref={zref} Ω)")
plt.tight_layout()
