Thermal Phase Shifter

1.

```python from collections import OrderedDict import xarray as xr

import matplotlib.pyplot as plt import numpy as np from femwell.maxwell.waveguide import compute_modes from femwell.mesh import mesh_from_OrderedDict from femwell.thermal import solve_thermal from shapely.geometry import LineString, Polygon from skfem import Basis, ElementTriP0 from femwell.visualization import plot_domains from tqdm import tqdm from skfem.io import from_meshio

```

```python

def simulate_heater(heater_width: float = 2.0, wavelength: float = 1.55, trench_w: float = 2, trench_h: float = 10, currents: float = 10e-3, w_sim: float = 15, plot: bool = False, ):

h_clad = 6.6
h_box = 4
w_core = 1
h_core = 0.8
h_heater = 0.2
h_silicon = 3.5

offset_heater = 1.7 + (h_core + h_heater) / 2

trench_gap = 5 + w_core
air_h = 1

air=Polygon(
    [
        (-w_sim/2, h_clad),
        (-trench_gap/2-trench_w, h_clad),
        (-trench_gap/2-trench_w, h_clad-trench_h),
        (-trench_gap/2, h_clad-trench_h),
        (-trench_gap/2, h_clad),
        (trench_gap/2, h_clad),
        (trench_gap/2, h_clad-trench_h),
        (trench_gap/2+trench_w, h_clad-trench_h),
        (trench_gap/2+trench_w, h_clad),
        (w_sim/2, h_clad),
        (w_sim/2, h_clad+air_h),
        (-w_sim/2, h_clad+air_h),
        (-w_sim/2, h_clad),
    ]
)

polygons = OrderedDict(
    bottom=LineString(
        [
            (-w_sim / 2, -h_box - h_silicon),
            (w_sim / 2, -h_box - h_silicon),
        ]
    ),
    core=Polygon(
        [
            (-w_core / 2, 0),
            (-w_core / 2, h_core),
            (w_core / 2, h_core),
            (w_core / 2, 0),
        ]
    ),
    heater=Polygon(
        [
            (-heater_width / 2, offset_heater),
            (-heater_width / 2, h_heater + offset_heater),
            (heater_width / 2, h_heater + offset_heater),
            (heater_width / 2, offset_heater),
        ]
    ),
    clad=Polygon(
        [
            (-w_sim / 2, 0),
            (-w_sim / 2, h_clad),
            (w_sim / 2, h_clad),
            (w_sim / 2, 0),
        ]
    ).difference(air),
    box=Polygon(
        [
            (-w_sim / 2, 0),
            (-w_sim / 2, -h_box),
            (w_sim / 2, -h_box),
            (w_sim / 2, 0),
        ]
    ).difference(air),
    wafer=Polygon(
        [
            (-w_sim / 2, -h_box - h_silicon),
            (-w_sim / 2, -h_box),
            (w_sim / 2, -h_box),
            (w_sim / 2, -h_box - h_silicon),
        ],
    ).difference(air),
    air=air,

)

resolutions = {
    "core": {"resolution": 0.1, "distance": 1},
    "clad": {"resolution": 0.6, "distance": 1},
    "box": {"resolution": 0.6, "distance": 1},
    "air": {"resolution": 0.6, "distance": 1},
    "heater": {"resolution": 0.1, "distance": 1},
}

mesh = from_meshio(
    mesh_from_OrderedDict(polygons, resolutions, default_resolution_max=0.6)
)

current_densities = currents / polygons["heater"].area
neffs = []

basis0 = Basis(mesh, ElementTriP0(), intorder=4)
thermal_conductivity_p0 = basis0.zeros()

for domain, value in {
    "core": 18.5,
    "box": 1.38,
    "clad": 1.38,
    "heater": 173,
    "wafer": 150,
    "air": 0.026,
}.items():
    thermal_conductivity_p0[basis0.get_dofs(elements=domain)] = value
thermal_conductivity_p0 *= 1e-12

if plot:
    plot_domains(mesh)

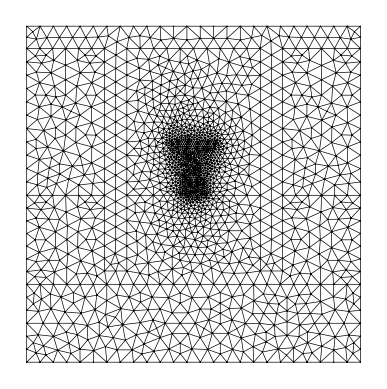

    mesh.draw().show()

for current_density in current_densities:
    basis, temperature = solve_thermal(
        basis0,
        thermal_conductivity_p0,
        specific_conductivity={"heater": 1.8e7},
        current_densities={"heater": current_density},
        fixed_boundaries={"bottom": 0},
    )

    temperature0 = basis0.project(basis.interpolate(temperature))
    epsilon = basis0.zeros() + (1.45 + 8.66e-6 * temperature0) ** 2
    epsilon[basis0.get_dofs(elements="core")] = (
        1.97439 + 2.45e-5 * temperature0[basis0.get_dofs(elements="core")]
    ) ** 2

    modes = compute_modes(basis0, epsilon, wavelength=wavelength, num_modes=1, solver="scipy")
    neffs.append(np.real(modes[0].n_eff))

return neffs

currents = np.linspace(0.0, 50e-3, 20) n_eff = simulate_heater(currents=currents, trench_w=1, plot=True)

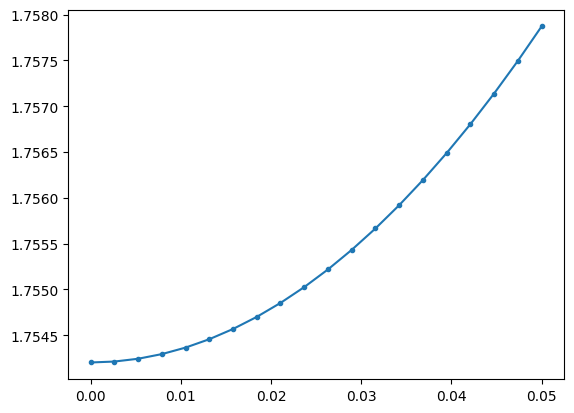

plt.plot(currents, n_eff, ".-") ```

[<matplotlib.lines.Line2D at 0x127ef1c10>]

```python

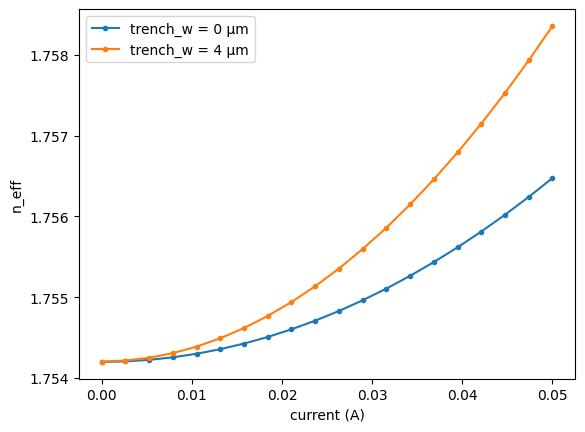

plt.figure() for w in [0, 4]: currents = np.linspace(0.0, 50e-3, 20) n_eff = simulate_heater(currents=currents, trench_w=w)

plt.plot(currents, n_eff, ".-", label=f"trench_w = {w} µm")

plt.legend() plt.xlabel("current (A)") plt.ylabel("n_eff")

```

Text(0, 0.5, 'n_eff')
