Generate measurements

For this tutorial you will generate some sample (fake) measurement data so you can post it to your project.

You're going to create a new folder and populate it with JSON files containing the fake measurement data for the whole wafer.

import json
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

df = pd.read_csv("design_manifest.csv")
df

def gaussian_grating_coupler_response(peak_power: float, center_wavelength: float, bandwidth_1dB, wavelength):
    """Calculate the response of a Gaussian grating coupler.

    Args:
        peak_power: The peak power of the response.
        center_wavelength: The center wavelength of the grating coupler.
        bandwidth_1dB: The 1 dB bandwidth of the coupler.
        wavelength: The wavelength at which the response is evaluated.

    Returns:
    - The power of the grating coupler response at the given wavelength.

    """
    # Convert 1 dB bandwidth to standard deviation (sigma)
    sigma = bandwidth_1dB / (2 * np.sqrt(2 * np.log(10)))

    # Gaussian response calculation
    response = peak_power * np.exp(-0.5 * ((wavelength - center_wavelength) / sigma) ** 2)
    return response


nm = 1e-3
# Parameters
peak_power = 1.0
center_wavelength = 1550 * nm  # Center wavelength in micrometers
bandwidth_1dB = 100 * nm

# Wavelength range: 100 nm around the center wavelength, converted to micrometers
wavelength_range = np.linspace(center_wavelength - 0.05, center_wavelength + 0.05, 121)

# Calculate the response for each wavelength
responses = [
    gaussian_grating_coupler_response(peak_power, center_wavelength, bandwidth_1dB, wl) for wl in wavelength_range
]

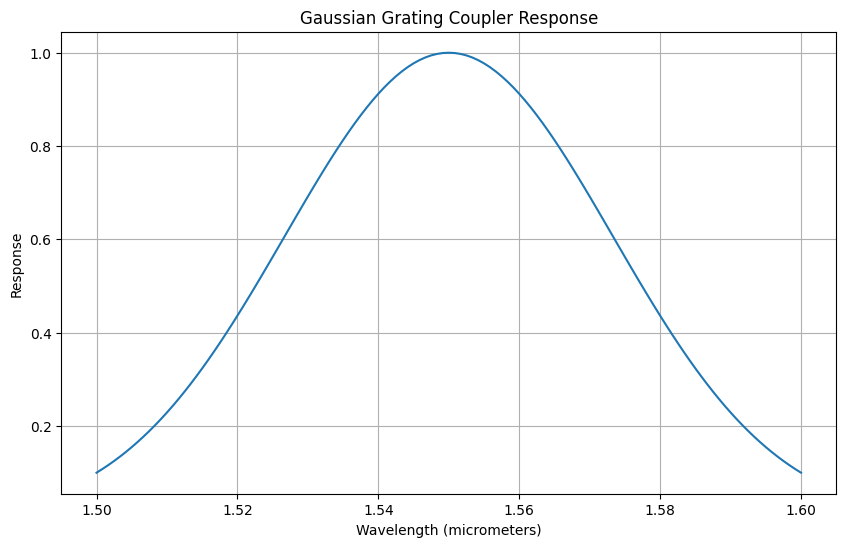

# Plotting
plt.figure(figsize=(10, 6))
plt.plot(wavelength_range, responses)
plt.title("Gaussian Grating Coupler Response")
plt.xlabel("Wavelength (micrometers)")
plt.ylabel("Response")
plt.grid(True)
plt.show()

Generate wafer definitions

You can define different wafer maps for each wafer.

wafer_map

widths_um = [0.3, 0.5, 0.8]
loss_dB = [3, 2.5, 1]
loss_vs_width_model = np.polyfit(widths_um, loss_dB, deg=1)
plt.plot(widths_um, loss_dB, ".")
plt.plot(widths_um, np.polyval(loss_vs_width_model, widths_um))
plt.xlabel("width (um)")
plt.ylabel("loss (dB/cm)")
plt.grid(True)
plt.show()

wafer_definitions = Path("wafer_definitions.json")
wafers = ["6d4c615ff105"]
dies = [{"x": x, "y": y} for y in range(-2, 3) for x in range(-2, 3) if not (abs(y) == 2 and abs(x) == 2)]

# Wrap in a list with the wafer information
data = [
    {
        "wafer": wafer_pkey,
        "dies": dies,
        "lot_id": "lot1",
        "attributes": {"doping_n": 1e-18},
        "description": "low doping",
    }
    for wafer_pkey in wafers
]

with open(wafer_definitions, "w") as f:
    json.dump(data, f, indent=2)

Generate and write spectrums

You can easily generate some spectrum data and add some noise to make it look like a real measurement.

data_dir = Path("wafers").resolve()
metadata = {"measurement_type": "Spectral MEAS", "temperature": 25}
noise_peak_to_peak_dB = 1
grating_coupler_loss_dB = 3

for wafer in wafers:
    wafer_per_cent_variation = 0.20  # 20% variation
    wafer_variation_factor = 1 + wafer_per_cent_variation * (2 * np.random.rand() - 1)

    for die in dies:
        die = f"{(die['x'])}_{(die['y'])}"
        for _, row in df.iterrows():
            cell_id = row["cell"]
            if "ridge" in cell_id:
                continue
            top_cell_id = "rib_loss" if "rib" in cell_id else "ridge_loss"
            device_id = f"{top_cell_id}_{cell_id}_{row['x']}_{row['y']}"
            dirpath = data_dir / wafer / die / device_id
            dirpath.mkdir(exist_ok=True, parents=True)
            data_file = dirpath / "data.parquet"
            metadata_file = dirpath / "attributes.json"
            metadata_file.write_text(json.dumps(metadata))
            loss_dB = np.polyval(loss_vs_width_model, row["width_um"]) * row["length_um"] * 1e-6 * 1e2
            loss_dB += 2 * grating_coupler_loss_dB
            peak_power = 10 ** (-loss_dB / 10)
            device_per_cent_variation = 0.05  # 5% variation
            device_variation_factor = 1 + device_per_cent_variation * (2 * np.random.rand() - 1)
            peak_power *= wafer_variation_factor * device_variation_factor

            output_power = [
                gaussian_grating_coupler_response(peak_power, center_wavelength, bandwidth_1dB, wl)
                for wl in wavelength_range
            ]
            output_power *= 10 ** (noise_peak_to_peak_dB * np.random.rand(len(wavelength_range)) / 10)
            # output_power_dB = 10*np.log10(output_power)
            d = {
                "wavelength": wavelength_range * 1e3,
                "output_power": output_power,
                "polyfit": loss_dB,
            }
            data = pd.DataFrame(d)
            data.attrs.update(metadata)
            data.to_parquet(data_file)

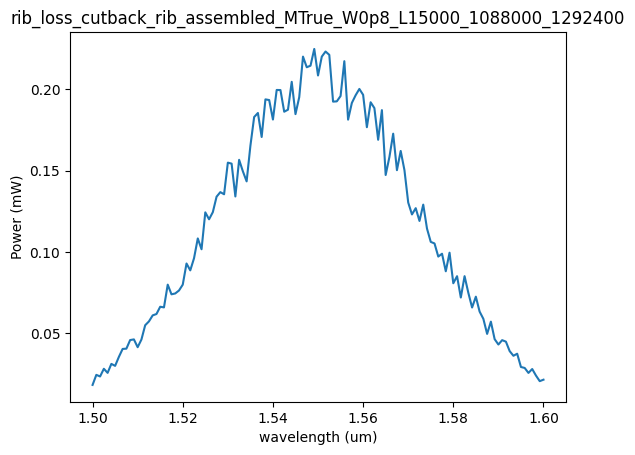

plt.plot(wavelength_range, output_power)
plt.title(dirpath.stem)
plt.ylabel("Power (mW)")
plt.xlabel("wavelength (um)")
plt.show()
