Now we will run an analysis using the device data we uploaded in the previous notebook.

As before, make sure you have the following environment variables set or added to a .env file:

GDSFACTORY_HUB_API_URL="https://{org}.gdsfactoryhub.com"
GDSFACTORY_HUB_QUERY_URL="https://query.{org}.gdsfactoryhub.com"
GDSFACTORY_HUB_KEY="<your-gdsfactoryplus-api-key>"

import getpass

from tqdm.auto import tqdm

import gdsfactoryhub as gfh
from gdsfactoryhub import (
    FunctionTargetModel,
)
from gdsfactoryhub.schemas import AnalysisExecutionRequest

project_id = f"cutback-{getpass.getuser()}"
client = gfh.create_client_from_env(project_id=project_id)
api = client.api()
query = client.query()

Die analysis

You can either trigger analysis automatically by defining it in the design manifest, using the UI or using the Python DoData library.

from gdsfactoryhub.functions.die import cutback_loss

cutback_loss.run?

die_pks = [d["pk"] for d in query.dies().execute().data]

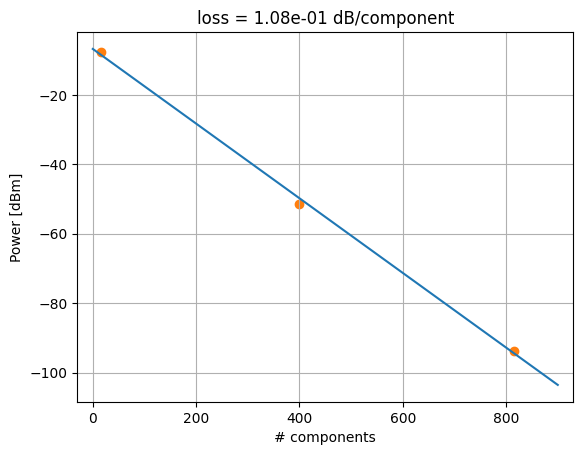

cutback_loss.run(die_pkey=die_pks[0])

result = api.delete_function(function_id="cutback_loss")

result = api.upload_function(
    function_id="cutback_loss",
    target_model="die",
    file=gfh.get_module_path(cutback_loss),
    test_target_model_pk=die_pks[0],
    test_kwargs={},
)

task_ids = []
for die_pk in (pb := tqdm(die_pks)):
    pb.set_postfix(die_pk=die_pk)
    task_id = api.start_analysis(  # start_analysis triggers the analysis task, but does not wait for it to finish.
        analysis_id=f"die_cutback_{die_pk}",
        function_id="cutback_loss",
        target_model="die",
        target_model_pk=die_pk,
        kwargs={},
    )
    task_ids.append(task_id)

# Create an empty list to store task IDs
task_ids = []

# Create a progress bar to show our progress
progress_bar = tqdm(die_pks)

# Loop through each die_pk (die primary key)
for die_pk in progress_bar:
    # Update the progress bar to show which die we're currently processing
    progress_bar.set_postfix(die_pk=die_pk)

    # Start the analysis for this die
    # This triggers the analysis task but doesn't wait for it to finish
    task_id = api.start_analysis(
        analysis_id=f"die_cutback_{die_pk}",
        function_id="cutback_loss",
        target_model="die",
        target_model_pk=die_pk,
    )

    # Add the task ID to our list so we can track it later
    task_ids.append(task_id)

def make_analysis_request(die_pk: str) -> AnalysisExecutionRequest:
    return AnalysisExecutionRequest(
        analysis_id=f"die-cutback-{die_pk}",
        function_id="cutback_loss",
        target_model=FunctionTargetModel.DIE,
        target_model_pk=die_pk,
        parameters={},
    )


analyses_requests = [make_analysis_request(die_pk=die_pk) for die_pk in die_pks]
analyses_pks = client.utils().analyses().run_analyses_in_batches(analyses_requests=analyses_requests)
